Odorless Pig Pens with Deep Litter (Korean Natural Farming for PH)

A Korean Natural Farming (KNF) deep litter pen runs at under ₱2,500 cash cost for a 4-pig setup, drops daily cleaning from 30-60 minutes down to about 5, and cuts smell and flies sharply. Indigenous microbes digest waste inside a 90-120 cm bed of green waste over logs and charcoal, instead of you hosing concrete every day.

What KNF deep litter actually is

Think of it as a layer cake. The bottom is a few inches of charcoal mixed with soil or biochar, which sets up the moisture-wicking foundation. Above it you stack untrimmed logs at least 5 cm thick for air gaps. On top goes a thick mat of green waste, banana leaves, coconut fronds, dried grass, kakawate trimmings, building up 90-120 cm above the logs. The original Cho Global Natural Farming and University of Hawaii extension spec calls for a roughly 1.2 m total bed (about half a foot of biochar-cinder, two feet of logs, then green waste and a topping of sawdust) (DuPonte, University of Hawaii Extension, via LPELC). The Philippine DA-ATI organic pig brochure lists the same core bedding mix: rice hull, carbonized rice hull, sawdust, soil, and a little salt (DA-ATI Cordillera, Organic Hog Raising).

You then inoculate the green waste with indigenous microorganisms (IMO #4) and lactic acid bacteria. After two or three weeks of conditioning, the bedding is biologically active. You bring in the pigs.

Pigs root, urinate, defecate as normal. The IMO digests waste on contact. Pigs walk, mix the bedding, the bedding sinks slightly, the microbes keep working. The bedding goes down rather than building up because the pigs eat some of the green waste and the rest decomposes (Hawai'i Homegrown Food Network). Every 7-8 months you reload with fresh green waste on top. After about a year you can dig out the bottom and use it as one of the best garden composts you'll ever produce.

That's the whole system.

What you actually need

Materials for a 4-pig backyard pen (about 6 sqm of pen floor):

Total cash cost for a small pen, if you have to buy everything: under ₱2,500. If you have farm trees, banana plants, and some garden soil: under ₱500.

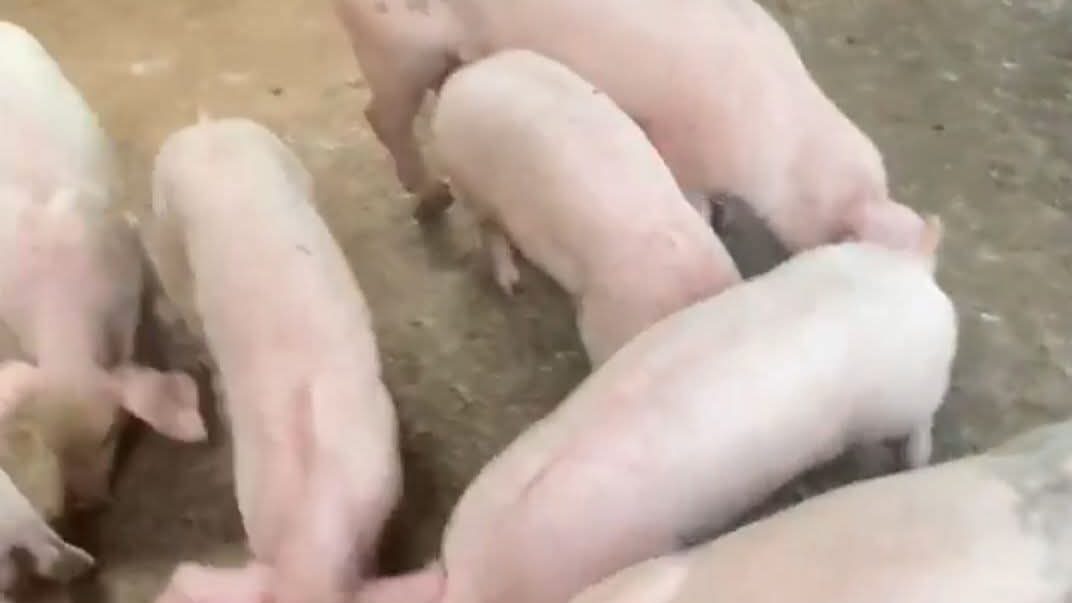

A standard concrete-floor pen for the same 4 pigs costs ₱20,000-₱40,000 in cement, hollow blocks, and labor, plus you'll spend ₱400-₱600/month on water for daily cleaning.

KNF deep litter pens need more floor area than concrete. The bedding works best at roughly 1.5 m² per finishing pig, versus 1.0 m² for slatted concrete. That tracks with the deep-litter research: litter systems generally need at least 30% more floor space per pig to stay aerobic, and crowding or a hot pen pushes ammonia back up fast (ammonia mitigation review, ScienceDirect). Size your pen before you build the frame, otherwise you will hit ammonia problems by month 3 even with good IMO.

How to make IMO (the part most farmers skip wrong)

IMO is the engine. Without it, your deep litter is just a wet pile that smells worse than a concrete pen. With it, waste disappears into the bedding daily.

The full KNF curriculum runs IMO #1 through #5. For pig pens you mainly need IMO #2 (the multiplied culture), then convert it to IMO #4 with rice hull and soil. The short version:

Step 1: Make IMO #1 (3 days)

1. Cook 1 kg of clean white rice slightly hard, less moisture than for eating (Business Diary PH). Let it cool.
2. Pack the rice into a wooden, bamboo, clay, or ceramic container, half-full. Avoid plastic, aluminum, and galvanized metal. They kill or inhibit microbes.
3. Cover the mouth with a cloth, secured with a rubber band or twine. The cloth lets air through but keeps insects and water out.
4. Place the container under a thick mat of leaves in a forest, a bamboo grove, or under a long-undisturbed tree. The forest floor is where you "harvest" wild microbial cultures.
5. Wait 3 days.

After 3 days, open the container. You should see a fluffy white mat of mold, sometimes with orange patches. White and orange are good. If you see mostly black or green mold, the culture is contaminated. Throw it out and start again. Usually that means your container caught moisture or you picked a poor spot.

Step 2: Make IMO #2 (7 days)

1. Weigh your moldy rice. Add an equal weight of molasses. So 1 kg of moldy rice gets 1 kg of molasses.
2. Mix thoroughly. The molasses feeds the microbes so they multiply massively.
3. Seal in a container, cool dark place, 7 days. You can use a regular plastic bottle or jar at this stage because the microbes are already established.

After 7 days you have IMO #2. This is your concentrated stock. It keeps for several months in a cool place.

Step 3: Convert to IMO #4 for the pen (a few hours of work)

1. Take a few liters of IMO #2.
2. Dilute it 1:500 with clean water (about 2 liters into a small drum of water).
3. Mix this with a barrowload of soil or carbonized rice hull until evenly damp but not dripping.
4. Spread the inoculated mix on top of the green waste in your pen.

Application rate: roughly 1 lb of IMO #4 per 50 sqft, or about 100 g per square meter (Sweet Cane Cafe, KNF guide). For a 6 sqm pen, that's about 600 g of inoculated mix.

Step 4: Lactic acid bacteria spray during conditioning (2-3 weeks)

While the pen is settling and before you bring pigs in, spray a 1:1000 dilution of lactic acid bacteria (LAB) once a week. LAB is made from rice wash water fermented with milk for 7 days. This balances the microbial population and pushes out the smelly anaerobic strains.

If this is your first time and you don't want to make LAB, a commercial probiotic concentrate from feed stores (often labeled EM-1 or "effective microorganisms") works as a substitute at the same dilution.

Building the pen: a 4-pig backyard layout

For four growers with about 1.5 sqm per pig, your pen is roughly 6 sqm of bedding plus a small concrete apron for feed and water. Here's a working layout:

Floor preparation. Dig out 30 cm of native soil if your yard is flat clay (water won't drain). On well-drained or slightly sloped ground, no excavation needed. Lay a 5-10 cm base of soil-charcoal mix or carbonized rice hull. Stack the logs across the bottom to create air gaps. Then layer green waste in the order: dry stuff at the bottom (rice straw, dry grass), wet stuff next (banana leaves, coconut fronds), thinner organic layers on top. Build to 60-90 cm above the floor logs.

Walls. Hollow block, lumber, or bamboo all work. The bedding wants air, so don't seal the walls airtight. Slatted wood or bamboo is ideal in the dry months.

Roof height. At least 2.4 m at the peak. Heat from the composting bedding is real, and a low roof traps it.

Day one with pigs

Once the bedding has been conditioning for 2-3 weeks and the surface is dry, fluffy, and mildly sweet-smelling (not sour, not putrid), bring in the pigs.

For the first week:

• Watch behavior. KNF pigs typically root, then settle into one corner for sleeping and another for defecating. The microbes eat the corner faster than the pigs fill it. If after a week the corner smells stronger than the rest, spray more LAB on that area.
• Turn the bedding once with a fork or shovel if you see compaction. After this, the pigs do all the turning.
• Don't throw water buckets on the bedding to "clean it." That breaks the microbial balance and creates the wet smelly mess people associate with bad pig pens.

Clean the feed apron daily with a brush. The bedding zone, never. Sus, that's the part that takes longest to trust, but leave it alone and let the microbes work.

What this system actually does and doesn't fix

Cutting through the marketing, here's the honest accounting of what the system actually delivers:

What it fixes:

• Smell. Drops a lot within a week of conditioning, from objectionable to faint. The extension write-ups say "no odor if managed correctly," but none of them publish an ammonia number, so treat "odorless" as a goal, not a guarantee (DuPonte, University of Hawaii Extension, via LPELC).
• Flies. Drop sharply because there's no exposed wet manure for them to lay eggs on. You'll still see some, just far fewer than over a wet concrete floor.
• Daily cleaning labor. You go from 30-60 minutes per day per pen to maybe 5 minutes for the apron.
• Routine manure handling. The dry, microbially active bed doesn't pool slurry the way wet concrete does, so day-to-day pathogen and parasite pressure from standing manure is lower (Bivatec, IMO in pig farming).
• Manure disposal. After about a year the dug-out bed is finished compost, useful as a soil amendment or sellable at roughly ₱2-₱5/kg locally.

What it doesn't fix:

• Heat in pigs. Composting bedding produces a lot of heat, and in warm climates that raises the risk of thermoregulatory stress (deep-litter group-housing study summary, ScienceDirect). In Philippine summer a deep litter pen runs hotter than shaded concrete, so roof height, airflow, and wallows or misters matter more, not less, with this system.
• ASF biosecurity. This is the honest catch. African swine fever virus survives in feces for at least 11 days and in decomposed blood for around 15 weeks, and contaminated bedding is a recognised farm-introduction route (smallholder ASF biosecurity review, PMC). Never bring in bedding from an area with sick pigs or where wild pigs roam, don't reuse litter or compost from a pen that had a die-off, and keep the same footbath, fencing, and visitor rules you'd run on concrete. KNF lowers nuisance pathogens; it does nothing against ASF. For what to do when a die-off hits, see the pig disease outbreak response guide.
• Rainy season management. If your roof leaks or your walls flood, the bed goes anaerobic and stinks. Plan drainage and water supply before you build the litter, the way the daily water needs guide lays out for any pen.
• Bad management. KNF doesn't compensate for overstocking, poor genetics, or skipping vaccinations. It's a labor and odor system, not a magic farming trick.

The common way this fails: someone dumps rice hull on an existing concrete pen with no inoculation, leaky walls, and sun baking the bed through gappy roofing, then gets a smellier pen with more flies and quits in two months blaming "the system." The system works. The shortcuts don't.

Cost compared to a conventional pen, over 5 years

For a 10-pig grow-out operation running 2-3 batches per year:

The labor saving is the part people undercount. You free up roughly 12-13 hours a month per pen. At a rural daily wage of about ₱400-₱645 (regional minimums vary), that's somewhere around ₱8,000-₱13,000 a year of your own time back, plus the water and disinfectant you stop buying. It won't make a bad herd profitable, but on a small backyard setup the lower build cost and water bill alone usually pay back the extra floor space within the first batch or two. If your real goal is turning manure into income rather than just cutting labor, compare this against a biogas digester setup, which keeps a conventional pen but monetises the slurry.

Where to learn more in the Philippines

• DA-ATI International Training Center on Pig Husbandry (ITCPH) in Lipa, Batangas. The only Asia-wide training center specifically for pig farming. Offers training in waste management and natural farming methods. ITCPH website.
• DOST-PCAARRD runs a probiotic-based swine raising program and publishes training materials freely (Probiotic-based Swine Raising Guide).
• Local natural farming circles. Search Facebook for "Korean Natural Farming Philippines," "Cho Han Kyu KNF Pinoy," or your provincial natural farming group. Active practitioners often run weekend training for ₱500-₱2,000 per session.
